SQL2GMS
Author
Erwin Kalvelagen

Overview

SQL2GMS is a tool to convert data from an SQL database into GAMS readable format. The source is any data source accessible through Microsoft's Data Access components including ADO, ODBC and OLEDB. The target is a GAMS Include File (.inc) or a GAMS GDX File (.gdx).

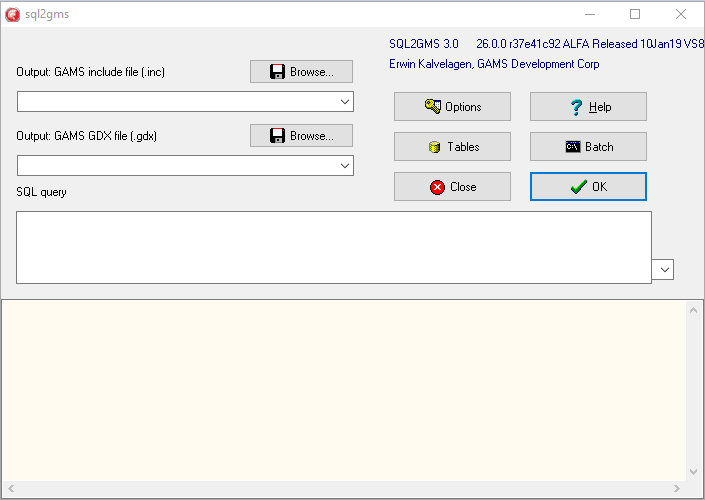

When running the executable sql2gms.exe without command line arguments, the tool will run interactively with a built-in GUI interface. Alternatively SQL2GMS can be run in batch mode, which is useful when running it directly from a GAMS model without user intervention using the $call command at compile time or the execute command at execution time.

Database tables can be considered as a generalization of a GAMS parameter. GAMS parameters have multiple index columns but just one value column. If the table is organized as multi-valued table, a UNION operation in the SQL statement can be used to generate the correct GAMS file.

There are no special requirements on the data types used in the database. The data is converted to strings, which is almost always possible. Data types like LONG BINARY may not be convertible to a string, in which case an exception will be raised. In general NULL's should not be allowed to get into a GAMS data structure. The handling of NULL's can be specified in an option.

Besides parameters it is also possible to generate set data.

If you need to read data from an MS Access database or MS Excel spreadsheet, the accompanying tools MDB2GMS or XLS2GMS resp. GDXXRW may be more appropriate. In some cases it may be more useful to use SQL2GMS to read from Access and Excel data sources.


Requirements

SQL2GMS runs only on Windows PC's with MDAC (Microsoft Data Objects) installed. In many cases this will be installed on your computer. Otherwise it can be downloaded from the Microsoft Download Center (direct link to MDAC).

In order to use SQL2GMS effectively, you will need to have a working knowledge of SQL in order to formulate proper database queries. In addition you will need some knowledge on how to connect to your database using ODBC or ADO.


Batch Usage

SQL2GMS can be run in batch mode without user intervention from within the GAMS model by using the $call resp. execute statements or directly from command prompt while specifying all arguments in the command-line. A SQL2GMS batch call is of the following form:

sql2gms connectionString outputFile queryString

A proper call will at least contain the following three command-line arguments:

  1. The name of the database and the instruction for connecting to the database must be specified within the connectionString, which is indicated by the option C. i.e. C=connectionString.
  2. The name of outputFile, either an include file (.inc) or GDX file (.gdx), must be specified. Using an include file to store the results of the query is indicated by the option O, i.e. O=outputFile.inc, while the use of a GDX file is indicated by the option X, i.e. X=outputFile.gdx.
  3. The SQL queryString, containing the SQL statement to be executed on the database, must be specified within the option Q, i.e. Q=queryString.

See also Command-line Arguments below for a complete list of all possible command-line arguments. Consider that the $call or execute usage is rather error prone and you will need to spend a little bit of time to get the call correct and reliable. Alternatively, use the interactive built-in GUI interface or enter the command-line arguments in an external text file in order to write a more structured and readable command. The use of an external parameter file is indicated by preceding the file name with a @ (At sign).

Also consider to take a look at the section Strategies, mentioning some of the drawbacks of the batch usage and how to overcome them.


Command-line Arguments

The following table summarizes the command-line arguments that can be specified when using SQL2GMS directly from the GAMS model or command prompt.

Argument InterpretationDefault Description
C connectionString none Specify the connectionString (required).
O outputIncludeFile none Specify the name of the output file (.inc). Either O= or X= must be specified (or both).
On nth outputIncludeFile none Match the nth query with the nth output file (.inc format) if multiple queries are used.
X outputGDXFile none Specify the name of the output file (.gdx). Either O= or X= must be specified (or both).
Q Query none This option can be used to specify a SQL query (required).
Qn nth query none Match the nth query with the nth output file (.inc) format or with the nth set- or parameter name when writing to GDX if multiple queries are used.
S setName none If we write to a GDX file, use this option to specify the name of a set to be used inside the GDX file.
Sn nth setName none Match the nth query with the nth set in the GDX file if multiple queries are used.
Y setName (with expl. text) none If we write to a GDX file, use this option to specify the name of a set to be used inside the GDX file. Use this argument to store a set with explanatory text.
Yn nth setName (with expl. text) none Match the nth query with the nth set (with explanatory text) in the GDX file if multiple queries are used.
A parameterName none If we write to a GDX file, use this option to specify the name of a parameter to be used inside the GDX file.
An nth parameterName none Match the nth query with the nth parameter in the GDX file if multiple queries are used.
L Listing disabled Controls if the data is embedded in the listing file.
M Mute disabled Controls if additional information is written to the log and include file.
B Quote Blanks disabled Quote strings if they contain blanks or embedded quotes.
@fileName ext. options file none Causes the program to read options from an external text file.
N iniFileName sql2gms.ini Indicates the usage of a different INI file.
T1 connectionTimeOut 15 Indicates how long to wait while establishing a connection before terminating the attempt and generating an error.
T2 commandTimeOut 30 Indicates how long to wait while executing a command before terminating the attempt and generating an error.
T timeOut none Sets both T1 and T2.
D Debug disabled Generate debug information.
E Empty sets disabled Allow an empty result set; without this option an empty result set will generate an error.
R rowBatchSize 100 Row batch size; the default is 100 records.
P Password none Specify a password for the database.
W Wiring none Maps database columns to GAMS index positions.


Some more detailed remarks on the command-line arguments:

C = string (connectionString, default = none)

This option is required and specifies which database is to be used and how SQl2GMS talks to the database. A collection of valid connection strings can be found in section Connection Strings. Often the connection string will need to be surrounded by quotes, as in: C="DSN=sample". This option is demonstrated in all examples, see Example 1 - Reading a single valued Table for instance.

O = string (outputIncludeFile, default = none)

This option specifies the name of the output file. The format of the output file will be a GAMS include file for a parameter or set statement. Make sure the directory is writable. UNC names can be used. An output file must be specified for batch operation: i.e. either O= or X= needs to be specified (or both). The include file will be an ASCII file that can be read by GAMS using the $include command within the data definition of a set, parameter or scalar. If the include file already exists, it will be overwritten. This option is demonstrated in Example 1 - Reading a single valued Table for instance.

On = string (outputIncludeFile, default = none)

When using multiple queries in a single SQL2GMS call, you can append a number to match a query with an output file, as an include file storing the results for multiples queries cannot be interpreted later on in your GAMS model when using the include file in a set or parameter definition:

Q1="SELECT a, b FROM table"
O1=ab.inc
Q2="SELECT c, d FROM table"
O2=cd.inc

See also section Multi-Query Batch Usage or Example 7 - Multi-Query Batch Example for instance.

X = string (outputGDXFile, default = none)

This option specifies the name of the output file. The format of the output file will be a GAMS GDX file. Make sure the directory is writable. UNC names can be used. If the GDX file already exists it will be overwritten - it is not possible to append to a GDX file. An output file must be specified for batch operation: i.e. either O= or X= needs to be specified (or both). This option is demonstrated in Example 5 - Reading Set with Explanatory Text or Example 7 - Multi-Query Batch Example for instance.

Q = string (query, default = none)

This option can be used to specify an SQL query. Queries can contain spaces and thus have to be surrounded by double quotes. For the exact syntax of the queries that is accepted by the database we refer to the documentation that comes with your RDBMS (Relational DataBase Management System). The query is passed on directly to the RDBMS so the complete power and expressiveness of SQL is available including stored procedures etc. For an exact description of allowed expressions consult a text on your database system. This option is demonstrated in Example 1 - Reading a single valued Table for instance.

Qn = string (query, default = none)

When using multiple queries in a single SQL2GMS call, you can append a number to match a query with an output file, as an include file storing the results for multiples queries cannot be interpreted later on in your GAMS model when using the include file in a set or parameter definition. In addition, you can match the results of a query with a specific set- or parameter name when writing to GDX.

Q1="SELECT a, b FROM table"
O1=ab.inc
Q2="SELECT c, d FROM table"
O2=cd.inc

or (GDX output file format - where several sets and parameters can be stored in a single file):

Q1="SELECT a, b FROM table"
A1=abParameter
Q2="SELECT c FROM table"
S2=cSet

Note the usage of the arguments An resp. Sn in order to store the results as parameter resp. set and to specify the name of the symbols. See also section Multi-Query Batch Usage or Example 7 - Multi-Query Batch Example for instance.

S = string (setName, default = none)

If we write to a GDX file, use this option to specify the name of a set to be stored in the GDX file (containing the results of the query). This option is demonstrated in Example 4 - Reading a multi dimensional Set.

Sn = string (setName, default = none)

If multiple queries are used in a single SQL2GMS call while writing to a GDX file, use this option to specify the name of the nth set to be stored in the GDX file (containing the results of the nth query), e.g.

Q1="SELECT i FROM table"
S1=iSet
Q2="SELECT j FROM table"
S2=jSet

See section Multi-Query Batch Usage and Example 7 - Multi-Query Batch Example for instance.

Y = string (setName, default = none)

If we write to a GDX file, use this option to specify the name of a set to be used inside the GDX file. The last column specified within the select clause in the SQL statement will be used as explanatory text. This option is demonstrated in Example 5 - Reading Sets with Explanatory Text for instance.

Yn = string (setName, default = none)

If multiple queries are used in a single SQL2GMS call while writing to a GDX file, use this option to specify the name of the nth set (with explanatory text) to be stored in the GDX file (containing the results of the nth query), e.g.

Q1="SELECT i, explTextForSeti FROM table"
Y1=iSet
Q2="SELECT j, explTextForSetj FROM table"
Y2=jSet

The last column specified within the select clause in the SQL statements will be used as explanatory text.

A = string (parameterName, default = none)

If we write to a GDX file, use this option to specify the name of a parameter to be stored the GDX file (containing the results of the query).
Note: MDB2GMS uses P, but P was already taken in SQL2GMS for specifying the password.

An = string (parameterName, default = none)

If multiple queries are used in a single SQL2GMS call while writing to a GDX file, use this option to specify the name of the nth parameter to be stored in the GDX file (containing the results of the nth query), e.g.

Q1="SELECT i, j, value FROM table"
A1=ijValue
Q2="SELECT n, m, value FROM table"
A2=nmValue

See section Multi-Query Batch Usage and Example 7 - Multi-Query Batch Example for instance. for instance.

L (Listing, disabled by default)

Embed the data between the $offListing and $onListing dollar control options, so the data will not be listed in the listing file. This is a quick way to reduce the size of the listing file when including very large data files into the model. Otherwise the listing file would become too large to be handled comfortably.

M (Mute, disabled by default)

Controls if additional information (GAMS and SQL2GMS version numbers, number of rows in the data, elapsed time, used query etc.) is written to the log and include file.

B (Quote Blanks, disabled by default)

Quote strings if they contain blanks or embedded quotes. If a string does not contain a blank or embedded quotes, it will remain unquoted. If the string contains a single quote the quotes applied will be double quotes and if the string contains already a double quote, the surrounding quotes will be single quotes. In the special case that the string contains both, the double quotes are replaced by single quotes. For more information see subsection Quotes. This option only applies to an output include file.

@fileName = string (fileName, default = none)

Causes the program to read options from an external text file. If the file name contains blanks, it can be surrounded by double quotes. The option file contains one option per line, in the same syntax as if they were specified directly on the command-line. See also Parameter Files for some further details.

N = string (fileName, default = none)

Use a different INI file than the standard sql2gms.ini located in the same directory as the executable sql2gms.exe.

T1 = integer (connectionTimeOut, default = 15)

Indicates how long to wait while establishing a connection before terminating the attempt and generating an error. The value sets, in seconds, how long to wait for the connection to open. Default is 15. If you set the property to zero, ADO will wait indefinitely until the connection is opened. A value of -1 indicates that the default value is to be used. Note: the provider needs to support this functionality.

T2 = integer (commandTimeOut, default = 30)

Indicates how long to wait while executing a command before terminating the attempt and generating an error. The value sets, in seconds, how long to wait for a command to execute. Default is 30. If you set the property to zero, ADO will wait indefinitely until the execution is complete. A value of -1 indicates that the default value is to be used. Note: the provider needs to support this functionality.

T = integer (timeOut, default = none)

Sets both T1 and T2.

D (Debug, disabled by default)

Generate debug information. This option must be specified in an INI file when using the interactive mode of SQL2GMS.

E (Empty sets, disabled by default)

Allow an empty result set; without this option an empty result set will generate an error. This option must be specified in an INI file when using the interactive mode of SQL2GMS.

R = integer (rowBatchSize, default = 100)

Row batch size; the default is 100 records. This option must be specified in an INI file when using the interactive mode of SQL2GMS.

P = string (password, default = none)

Specify a password for the database.

W = string (wiring, default = none)

By using the W option, one can map database columns to GAMS index positions. See model [Wiring] for reference (note that MDB2GMS is used to access the MS Access database instead of SQL2MDB, however this does not affect the wiring specification).


Example 1 - Reading a single valued Table

Suppose we want to read the distances parameter of the [trnsport] model from the GAMS Model Library. The data is stored in the Microsoft Access Database format (file Sample.mdb).

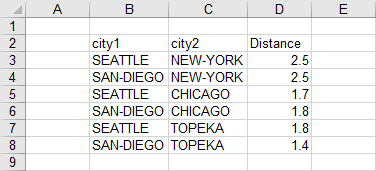

Table: distances

The data can be queried with a simple SQL statement:

SELECT city1, city2, distance
FROM distances

By running the following SQL2GMS statement, the connection to the database Sample.mdb is established. In addition, the data will be queried and the results are written to a GAMS include file afterwards (.inc).

sql2gms C="Provider=Microsoft.Jet.OLEDB.4.0;Data Source=Sample.mdb" Q="SELECT city1, city2, distance FROM distances" O=distances.inc

The connection string is specified using the argument C. Note that the string is enclosed by quotes, as the string contains blanks. The database file name Sample.mdb is also specified within the connection string. For more information on how to connect to your database, see section Connection Strings. The arguments Q and O are used to specify the query and the output file name (and format).

The generated include file distances.inc looks like:

* -----------------------------------------------------
* SQL2GMS 3.0      25.2.0 r67636 ALFA Released 15Aug18 VS8 x86 32bit/MS Windows
* Erwin Kalvelagen, GAMS Development Corp
* -----------------------------------------------------
* ADO version: 10.0
* Connection string: Provider=Microsoft.Jet.OLEDB.4.0;Data Source=Sample.mdb
* Provider: MSDASQL
* Query: SELECT city1, city2, distance FROM distances
* -----------------------------------------------------
SEATTLE.NEW-YORK 2.5
SAN-DIEGO.NEW-YORK 2.5
SEATTLE.CHICAGO 1.7
SAN-DIEGO.CHICAGO 1.8
SEATTLE.TOPEKA 1.8
SAN-DIEGO.TOPEKA 1.4
* -----------------------------------------------------

The commented header section summarizes some information about the SQl2GMS resp. GAMS version and about the executed database query. The standard export format is to consider the last column as the value column (containing the distances) and the previous columns as the indices (containing the city names). The indices are separated by a dot, allowing the generated include file to be used as part of a parameter declaration statement in your GAMS model.

Retrieving the data using SQL2GMS from the database and including the queried data in your GAMS model within the parameter declaration statement (at compile time) can be combined in the following way:

Set
   i 'canning plants' / seattle,  san-diego /
   j 'markets'        / new-york, chicago, topeka /;

$call sql2gms C="Provider=Microsoft.Jet.OLEDB.4.0;Data Source=Sample.mdb" Q="SELECT city1, city2, distance FROM distances" O=distances.inc
Parameter d(i,j) 'distance in thousands of miles' /
$include distances.inc
/;

display d;

Finally, the values of the parameter d are displayed:

             new-york     chicago      topeka

seattle         2.500       1.700       1.800
san-diego       2.500       1.800       1.400

This example is also part of the GAMS Data Utilities Library, see model [Distances2] for reference. Note that the query results are written to a GDX file in addition.


Example 2 - Reading a multi valued Table

In this scenario, we want two read the three index columns year, loc, prod and the value columns sales and profit from the database file Sample.mdb. Therefore, we use two separate parameters and queries or alternatively a parameter with an extra index position (for sales resp. profit) and a UNION select.

Consider the table with two value columns sales and profit:

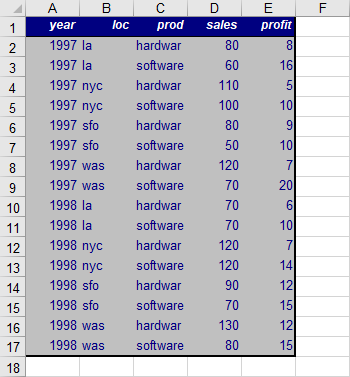

Table: data (shortened for presentation)

Two separate Parameters

A simple way to import this into GAMS is to use two parameters and two SQL queries. The SQL queries can look like:

SELECT year, loc, prod, sales
FROM data
SELECT year, loc, prod, profit
FROM data

We can generate a include file sales.inc by running the following command:

sql2gms C="DRIVER={Microsoft Access Driver (*.mdb)};dbq=Sample.mdb" Q="SELECT year, loc, prod, sales FROM data" O=sales.inc

Note that we specify the first query in order to select the sales and the relevant index columns within the Q argument. The query results are written to sales.inc using the O argument. Analogously we generate a include file profit.inc by running the following command while specifying the second query in order to obtain the profits and the relevant index columns:

sql2gms C="DRIVER={Microsoft Access Driver (*.mdb)};dbq=Sample.mdb" Q="SELECT year, loc, prod, profit FROM data" O=profit.inc

Retrieving the data using SQL2GMS from the database Sample.mdb and including the queried data in your GAMS model within the parameter declaration statements of sales and profit (at compile time) can be combined in the following way:

Set
   year 'years'     / 1997*1998 /
   loc  'locations' / nyc, was, la, sfo  /
   prd  'products'  / hardware, software /;

$call sql2gms C="DRIVER={Microsoft Access Driver (*.mdb)};dbq=Sample.mdb" Q="SELECT year, loc, prod, sales FROM data" O=sales.inc
Parameter sales(year,loc,prd) /
$include sales.inc
/;

$call sql2gms C="DRIVER={Microsoft Access Driver (*.mdb)};dbq=Sample.mdb" Q="SELECT year, loc, prod, profit FROM data" O=profit.inc
Parameter profit(year,loc,prd) /
$include profit.inc
/;

Single Parameter with extra Index Position

The operation can also be performed in one big swoop by using a different GAMS datastructure, i.e. a single parameter is defined with an extra index type to indicate the data type (sales or profit). The index and value columns will be selected by the following SQL statement. Note the UNION operation in order to combine the results and the strings 'sales' resp. 'profit' to identify the data type later on.

SELECT year, loc, prod, 'sales', sales
FROM data
UNION
SELECT year, loc, prod, 'profit', profit
FROM data

The data is accessed, queried and written to data.inc by running the following command:

sql2gms @howToRead.txt

Note that usage of the external parameter file howToRead.txt shown below in order to increase the readability of the command (one argument per line, quotes can be omitted):

C=DRIVER={Microsoft Access Driver (*.mdb)};dbq=Sample.mdb
Q=SELECT year, loc, prod, 'sales', sales FROM data UNION SELECT year, loc, prod, 'profit', profit FROM data
O=data.inc

The generated include file data.inc looks like (shortened for presentation):

* -----------------------------------------------------
* SQL2GMS 3.0      25.2.0 r67636 ALFA Released 15Aug18 VS8 x86 32bit/MS Windows
* Erwin Kalvelagen, GAMS Development Corp
* -----------------------------------------------------
* ADO version: 10.0
* Connection string: DRIVER={Microsoft Access Driver (*.mdb)};dbq=Sample.mdb
* Provider: MSDASQL
* Query: SELECT year, loc, prod, 'sales', sales FROM data UNION SELECT year, loc, prod, 'profit', profit FROM data
* -----------------------------------------------------
1997.la.hardware.profit 8
1997.la.hardware.sales 80
1997.la.software.profit 16
1997.la.software.sales 60
1997.nyc.hardware.profit 5
1997.nyc.hardware.sales 110
1997.nyc.software.profit 10
1997.nyc.software.sales 100
1997.sfo.hardware.profit 9
1997.sfo.hardware.sales 80
1997.sfo.software.profit 10
1997.sfo.software.sales 50
1997.was.hardware.profit 7
1997.was.hardware.sales 120
1997.was.software.profit 20
1997.was.software.sales 70
1998.la.hardware.profit 6
1998.la.hardware.sales 70
* -----------------------------------------------------

Retrieving the data using SQL2GMS from the database and including the queried data in your GAMS model within the parameter declaration (at compile time) can be combined in the following way (note that the parameter has a fourth index type in order to access the data type sales resp. profit):

$onEcho > howToRead.txt
C=DRIVER={Microsoft Access Driver (*.mdb)};dbq=Sample.mdb
Q=SELECT year, loc, prod, 'sales', sales FROM data UNION SELECT year, loc, prod, 'profit', profit FROM data
O=data.inc
$offEcho

Set
   year 'years'     / 1997*1998 /
   loc  'locations' / nyc, was, la, sfo  /
   prd  'products'  / hardware, software /
   type 'data type' / sales, profit      /;

$call sql2gms @howToRead.txt
Parameter data(year,loc,prd,type) /
$include data.inc
/;

This example is also part of the GAMS Data Utilities Library, see model [SalesProfitDB5] for reference.


Example 3 - Reading a one dimensional Set

This example demonstrates how to read set elements of a one dimensional set from a single column of a database file. Suppose we want to read the column City1 (see table distances) in order to define the set i in the GAMS model. Make sure elements are unique by using the distinct operation within the SQL statement (otherwise there will be an error when including the file within the set definition in the GAMS model, as some set elements will be redefined):

SELECT distinct(City1)
FROM distances

The include file city1.inc looks like (header informations are removed in order to shorten the representation):

* -----------------------------------------------------
SAN-DIEGO
SEATTLE
* -----------------------------------------------------

All steps (data access via SQL2GMS, set definition) can be combined:

$call sql2gms C="Provider=Microsoft.Jet.OLEDB.4.0;Data Source=Sample.mdb" Q="SELECT distinct(city1) FROM distances" O=city_i.inc
Set i 'canning plants' /
$include city_i.inc
/;

display i;

The display statement generates the following output in the listing file:

----     56 SET i

seattle  ,    san-diego


Example 4 - Reading a multi dimensional Set

When reading a multi dimensional set from database and writing the results to an include file by using the O argument, one has to observe that the elements in the include file must have the correct format in order to be interpreted as element of a multi dimensional set. For instance, a line containing a b c is not recognized as a proper set element of a three dimensional set. In particular, one has to add periods between the single elements, i.e. a.b.c will be interpreted correctly.

Depending on your DBMS (DataBase Management System), these periods must be added explicitly in a different way within the SQL statement. E.g. add a dummy value field by adding a quoted blank to the select clause (index1, index2, index3 and dataTable are some placeholders):

SELECT index1, index2, index3, " " FROM dataTable

or by adding the periods explicitly within the select clause (|| or & depending on DBMS):

SELECT index1&'.'&index2&'.'&index3 FROM dataTable
SELECT index1||'.'||index2||'.'||index3 FROM dataTable


For instance, suppose we want to define a two dimensional set

Set ij(i,j) 'canning plants - markets';

based on the data of the table distances stored in Sample.mdb. The following SQL2GMS statement connects you to the database, queries the columns with the city names and adds an empty value field in order to create periods between the set elements:

sql2gms C="Provider=Microsoft.Jet.OLEDB.4.0;Data Source=Sample.mdb" Q="SELECT city1, city2, ' ' FROM distances" O=city_ij.inc

The include file city_ij.inc looks like (header informations are removed in order to shorten the representation):

* -----------------------------------------------------
SEATTLE.NEW-YORK ' '
SAN-DIEGO.NEW-YORK ' '
SEATTLE.CHICAGO ' '
SAN-DIEGO.CHICAGO ' '
SEATTLE.TOPEKA ' '
SAN-DIEGO.TOPEKA ' '
* -----------------------------------------------------

Without adding the empty value field, the resulting include file would look like (shortened):

* -----------------------------------------------------
SEATTLE NEW-YORK
SAN-DIEGO NEW-YORK
* -----------------------------------------------------

Since the periods are missing, the lines are not recognized as valid elements of a two dimensional set. All steps can be combined in the following way:

Set
   i 'canning plants' / seattle,  san-diego /
   j 'markets'        / new-york, chicago, topeka /;

$call sql2gms C="Provider=Microsoft.Jet.OLEDB.4.0;Data Source=Sample.mdb" Q="SELECT city1, city2, ' ' FROM distances" O=city_ij.inc

Set ij(i,j) 'two dimensional set' /
$include city_ij.inc
/;

display ij;

The display statement generates the following output in the listing file:

----     75 SET ij  two dimensional set

             new-york     chicago      topeka

SAN-DIEGO         YES         YES         YES
SEATTLE           YES         YES         YES


Note that there is no need to add periods explicitly when reading multi dimensional sets, if the results are written only to a GDX file by using the X and S resp. Y arguments, i.e. there is no need to modify the query:

SELECT index1, index2, index3 FROM datatable

when using SQL2GMS in the following way:

sql2gms C="Provider=Microsoft.Jet.OLEDB.4.0;Data Source=Sample.mdb" Q="SELECT index1, index2, index3 FROM datatable" X=setData.gdx S=setName

which will generate the file setData.gdx with a three dimensional set named setName containing the results of the query.


Example 5 - Reading Sets with Explanatory Text

In this example, we will demonstrate how to read set elements with explanatory text from a database file using SQL2GMS. In the first place, we are going to write the query results to an include file, afterwards we use the Y argument in order to store the query results as a set with explanatory text in a GDX file.

Table: setData

Note the blanks and the mixed quotes in the column containing the explanatory text. The data can be accessed by the following query:

SELECT setElement, explText
FROM setData

Writing the Query Results in an include File
The last column in the select clause will be used as explanatory text. Take in mind to add the argument B in order to handle text strings with embedded blanks or quotes. The following GAMS code accesses the data and writes the results to an include file setData.inc:

$call sql2gms C="Provider=Microsoft.Jet.OLEDB.4.0;Data Source=Sample.mdb" B Q="SELECT setElement, explText FROM setData" O=setData.inc

Set a /
$include setData.inc
/;

The resulting include file will look like (header informations are removed in order to shorten the representation):

* -----------------------------------------------------
firstSetElement "Explanatory text for the first 'set element'"
secondSetElement 'Explanatory text for the second "set element"'
thirdSetElement "Explanatory text for the third 'set element'"
fourthSetElement 'Explanatory text for the fourth set element'
* -----------------------------------------------------

Note the handling of the quotes according to the description in B.

Writing the Query Results in a GDX File
When storing the results of the query as a set with explanatory text in a GDX file, there is no need to observe embedded blanks or quotes manually, instead one can use the Y argument. The last column specified in the select clause of the SQL statement will be interpreted as explanatory text. The following GAMS code accesses the data and writes the results to a GDX file setData.inc:

$call sql2gms C="Provider=Microsoft.Jet.OLEDB.4.0;Data Source=Sample.mdb" Q="SELECT setElement, explText FROM setData" X=setData.gdx Y=set_b

Set b;
$gdxIn setData.gdx
$load b = set_b
$gdxIn

Note that the name of the set in the GDX file is set_b (specified within the Y argument), while the name of the GDX file was specified within the X argument.


Example 6 - Index Mapping

In some cases the index elements used in the database are not the same as in the GAMS model. E.g. consider the case where the GAMS model has defined a set as:

Set i / NY, DC, LA, SF /;

Now assume a data table looks like:

Table: example table

This means we have to map ‘new york' to ‘NY' etc. This mapping can be done in two places: either in GAMS or in the database.


Index Mapping done in GAMS

When we export the table directly, we get the following include file (header informations are removed in order to shorten the representation):

* -----------------------------------------------------
'new york' 100
'los angeles' 120
'san francisco' 105
'washington dc' 102
* -----------------------------------------------------

Note that the single quotes are added by activating the option B (quote blanks), as the index elements contain blanks. Accessing the data, importing the resulting include file and converting it to a different index space can be done by the following GAMS code:

Set i / NY, DC, LA, SF /;

Set idb 'from database' / 'new york', 'washington dc', 'los angeles', 'san francisco' /;

$call sql2gms C="DRIVER={Microsoft Access Driver (*.mdb)};dbq=Sample.mdb" B O="city1.inc" Q="SELECT city, value FROM [example table]"
Parameter dbdata(idb) /
$include city1.inc
/;

Set mapindx(i,idb) / NY.'new york', DC.'washington dc', LA.'los angeles', SF.'san francisco' /;

Parameter data(i);
data(i) = sum(mapindx(i,idb), dbdata(idb));
display data;

The display statement generates the following output in the listing file:

----     47 PARAMETER data

NY 100.000,    DC 102.000,    LA 120.000,    SF 105.000

This example is also part of the GAMS Data Utilities Library, see model [IndexMapping3] for reference.


Index mapping done in Database

The second approach is to handle the mapping inside the database. We can introduce a mapping table that looks like:

Table: CityMapper

This table can be used in a join to export the data in a format we can use by executing the query:

SELECT [GAMS City], value
FROM example_table, CityMapper
WHERE CityMapper.[Access City]=example_table.city

The resulting include file looks like (header informations are removed in order to shorten the representation):

* -----------------------------------------------------
la 120
ny 100
sf 105
dc 102
* -----------------------------------------------------

All steps can be combined in the GAMS model:

Set i / NY, DC, LA, SF /;

$onEcho > howToRead.txt
C=DRIVER={Microsoft Access Driver (*.mdb)};dbq=Sample.mdb
Q=SELECT [GAMS City], [value] FROM example_table, CityMapper WHERE CityMapper.[Access City]=example_table.city
O=city2.inc
$offEcho

$call sql2gms @howToRead.txt
Parameter data(i) /
$include city2.inc
/;
display data;

The display statement generates the following output in the listing file:

----     38 PARAMETER data

NY 100.000,    DC 102.000,    LA 120.000,    SF 105.000

Note: MS Access allows table names with embedded blanks. In that case the table name can be surrounded by square brackets. Other databases may not allow this.

This example is also part of the GAMS Data Utilities Library, see model [IndexMapping4] for reference.


Multi-Query Batch Usage

In some cases a number of small queries need to be performed on the same database. However, several individual SQL2GMS execution can become expensive, since there is significant overhead in starting Access and opening the database. For these cases, we have added the option to do multiple queries in one call. To execute several queries in a single SQL2GMS call and write several GAMS include files containing the results of the queries, we can use the command-line arguments Qn and On. The structure of a multi-query call looks like:

C=DRIVER={Microsoft Access Driver (*.mdb)};dbq=sample.mdb

Q1=firstQuery
O1=outputFileName.inc

Q2=secondQuery
O2=outputFileName.inc

Q3=thirdQuery
O3=outputFileName.inc

The terms firstQuery, secondQuery etc. are placeholders for some SQL statements. We see that the argument Qn is matched by an argument On. That means that the results of the n-th query are written to the n-th output file.

In case we want to store the results of a multi-query call to a single GDX file, we can use the command-line arguments Qn, Sn, An and Yn. The structure of a multi-query call when writing to a GDX file looks like:

C=DRIVER={Microsoft Access Driver (*.mdb)};dbq=sample.mdb
X=sample.gdx

Q1=firstQuery
S1=setName

Q2=secondQuery
S2=setName

Q3=thirdQuery
A3=parameterName

Q4=fourthQuery
A4=setName

Again, the terms firstQuery, secondQuery etc. are placeholders for some SQL statements. Here we see that a query Qn is matched by either a set name Sn or a parameter name An (the letter P was taken already: it is used to specify a password), i.e. the results of the first query will be stored as a set whose name is specified within the S1 argument, the results of the third query will be stored as a parameter whose name is specified within the A3 argument etc. The X argument is used to specify the name of the GDX file.

For a complete example see section Example 7 - Multi-Query Batch Example .


Example 7 - Multi-Query Batch Example

As an example database we use the following Access table (file Sample.mdb):

Table: data (shortened for presentation)

We want to extract the following information:

  • The set year
  • The set loc
  • The set prd
  • The parameter sales
  • The parameter profit

Output: Several include Files

This can be accomplished using the following GAMS code with multiple queries in a single SQL2GMS call (note the usage of the distinct operator in the select clauses of the queries whose results will be used as sets in order to keep the set elements unique):

$onEcho > howToRead.txt
C=DRIVER={Microsoft Access Driver (*.mdb)};dbq=Sample.mdb

Q1=SELECT distinct(year) FROM data
O1=year.inc

Q2=SELECT distinct(loc) FROM data
O2=loc.inc

Q3=SELECT distinct(prod) FROM data
O3=prod.inc

Q4=SELECT prod, loc, year, sales FROM data
O4=sales.inc

Q5=SELECT prod, loc, year, profit FROM data
O5=profit.inc
$offEcho

$call =sql2gms @howToRead.txt

Set y 'years' /
$include year.inc
/;
Set loc 'locations' /
$include loc.inc
/;
Set prd 'products' /
$include prod.inc
/;

Parameter sales(prd,loc,y) /
$include sales.inc
/;
display sales;

Parameter profit(prd,loc,y) /
$include profit.inc
/;
display profit;

This example is also part of the GAMS Data Utilities Library, see model [SalesProfitDB6] for reference.

Output: A single GDX File

The same example imported through a GDX file can look like:

$onEcho > howToRead.txt
C=Provider=Microsoft.Jet.OLEDB.4.0;Data Source=Sample.mdb
X=Sample.gdx

Q1=SELECT distinct(year) FROM data
S1=year

Q2=SELECT distinct(loc) FROM data
S2=loc

Q3=SELECT distinct(prod) FROM data
S3=prd

Q4=SELECT prod, loc, year, sales FROM data
A4=sales

Q5=SELECT prod, loc, year, profit FROM data
A5=profit
$offEcho

$call =sql2gms @howToRead.txt
$call =shellExecute gdxviewer Sample.gdx

Set
   y   'years'
   loc 'locations'
   prd 'products';

Parameter
   sales(prd,loc,y)
   profit(prd,loc,y);

$gdxIn sample.gdx
$load y=year prd loc sales profit
$gdxIn

display sales, profit;

The call of the GDXViewer will display the GDX file in the stand-alone GDX viewer. This example is also part of the GAMS Data Utilities Library, see model [SalesProfitDB7] for reference.


Interactive Usage

When the tool is called without command-line arguments, it will startup interactively. Using it this way, one can specify options such as the connection string, the query and the final destination file (a GAMS include file or a GDX file) using the built-in interactive environment. The main screen (see figure below) contains a number of buttons and edit boxes, which are explained below.

SQL2GMS - Graphical User Interface


  • Output GAMS Include file (*.inc). If you want to create a GAMS include file, then specify here the destination file. See also outputIncludeFile for some more detailed remarks.

  • Output GDX file (*.gdx). As an alternative to a GAMS include file, the tool can also generate a GDX file. One or both of the output files need to be specified. See also outputGDXFile for some more detailed notes.

  • SQL Query. The SQL Query box is the place to provide the query. Note that the actual area for text can be larger than is displayed: use the cursor-keys to scroll. See also Q for some more detailed notes.

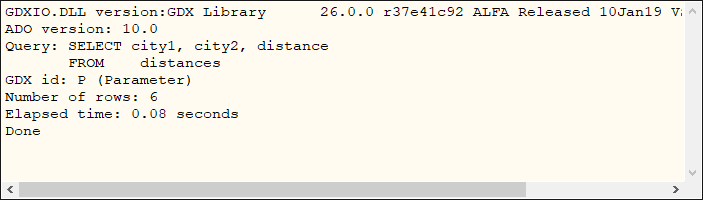

  • Progress Memo. This memo field is used to show progress of the application. Also error messages from the database are printed here. This is a read-only field.

  • The edit boxes above all have a drop down list which can be used to access quickly file names and queries that have been used earlier (even from a previous session).

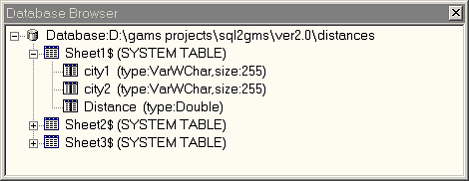

  • The Tables button will pop up a new window with the contents of the database file selected in the input file edit line. This allows you to see all table names and field names needed to specify a correct SQL query. An exception will be generated if no database file name is specified in the input edit line.

  • The Options button will pop up a window where you can specify a number of options. The connection string is an important option, which needs to be set correctly before a query can be submitted successfully.

  • Pressing the Help button will show this documentation.

  • Pressing the OK button will execute the query and an output file will be generated.

  • The Batch button will give information on how the current extract command can be executed directly from GAMS in a batch environment. The batch call will be displayed and can be copied onto the clipboard. In the IDE press Ctrl-C or choose Edit|Paste to copy the contents of the clipboard to a GAMS text file.

  • Pressing the Close button will exit the application. The current settings will be saved in an INI file so when you run SQL2GMS again all current settings will be restored.


Options

The Options window can be created by pressing the options button:

Options Menu of the Graphical User Interface


The following options are available in the options window:

  • User name: Here you can specify the user name for logging in to the RDBMS. For databases without user authentication, this can be left empty.

  • Password: This edit box allows you to specify the password for the database system. The characters are echoed as a '*'.

  • Connection String: The connection string determines how SQL2GMS talks to the database. For more informations see Connection Strings.

  • ODBC Data Sources/Drivers: This drop down list can be used to compose a connection string when an ODBC data source or driver is involved. The list will show all configured data sources and all available ODBC drivers.

  • Quote blanks: Quote strings if they contain blanks or embedded quotes. See also B for some more detailed notes.

  • Mute: Don't include the extra informational text (such as used query etc.) in the include file. The equivalent command-line argument is M.

  • No listing: Surround the include file by $offListing and $onListing so that the data will not be echoed to the listing file. The equivalent command-line argument is L.

  • Format SQL: If an SQL text is reloaded in the SQL Edit Box, it will be formatted: keywords will be printed in CAPS and the FROM and WHERE clause will be printed on their own line. If this check box is unchecked this formatting will not take place and SQL queries will be shown as is.

The following options are only needed in special cases:

  • NULL: This radio box determines how NULL's are handled. A NULL in an index position or a value column will usually make the result of the query useless: the GAMS record will be invalid. To alert you on NULL's the default to throw an exception is a safe choice. In special cases you may want to map NULL's to an empty string or a 'NULL' string.

  • Time-out values for connection time and command execution time expressed in seconds. If -1 is specified then it will use the default value which is 15 seconds for the connection and 30 for the commands. See also T1, T2 resp. T for some more detailed notes.

The following buttons have an obvious functionality:

  • OK button will accept the changes made.

  • Cancel button will ignore the changes made and all option settings will revert to their previous values.

  • Help button will show this documentation.

  • Test Connection will try to make a connection to the database using the given connection string.

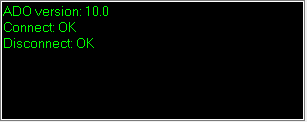

If the settings are correct you will see something like:



The following options can only be specified in an INI file; there is no interactive equivalent:

Key Type Meaning
D Generate debug output
E Allow an empty result set; without this option an empty result set will generate an error
R integer Row batch size; the default is 100 records


Connection Strings

The connection string determines to which database the tool will try to connect. You can give simply the name of an ODBC Data Source or provide much more elaborate connection strings. Here is an example list:

  • ODBC Examples
    SourceConnection String
    ODBC Data Source
    MyDSN
    ODBC Data Source
    DSN=MyDSN
    ODBC DSN with userid and password
    DSN=xxx;UID=yyy;PWD=zzz;
    ODBC File DSN
    FILEDSN=d:\ppp\fff.dsn;UID=yyy;PWD=zzz;
    ODBC DSN-less Text Driver
    Driver={Microsoft Text Driver (*.txt; *.csv)};Dbq=d:\ppp\; Extensions=asc,csv,tab,txt;Persist Security Info=False
    (Note: the filename is used in the FROM clause in the query string.)
    ODBC DSN-less MS Access Driver
    Driver={Microsoft Access Driver (*.mdb)};Dbq=d:\ppp\fff.mdb;Uid=yyy;Pwd=zzz;
    ODBC DSN-less driver for MS SQL Server
    Driver={SQL Server};Server=sss;Database=ddd;Uid=yyy;Pwd=zzz;
    ODBC DSN-less MS Access Driver
    Driver={Microsoft Access Driver (*.mdb)};Dbq=d:\ppp\fff.mdb;Uid=yyy;Pwd=zzz;
    ODBC DSN-less driver for MS SQL Server
    Driver={SQL Server};Server=sss;Database=ddd;Uid=yyy;Pwd=zzz;
    ODBC Driver for Oracle
    Driver={Microsoft ODBC for Oracle};Server=sss;Uid=yyy;Pwd=zzz
    ODBC Driver for Oracle (old)
    Driver={Microsoft ODBC Driver for Oracle};ConnectString=sss; Uid=yyy; Pwd=zzz;
    ODBC driver for MySQL
    DRIVER={MySQL ODBC 3.51 Driver};SERVER=localhost;DATABASE=test; UID=xxx;PWD=yyy;OPTION=3
    See http://www.mysql.com/products/myodbc/manual_toc.html
    ODBC driver for Interbase 6/Firebird
    DRIVER={XTG Systems InterBase6 ODBC driver};DB=localhost:d:\gams projects\sql2gms\ver2.0\ib.gdb;UID=xxx;PWD=yy
    See http://www.xtgsystems.com

  • OLE DB Examples
    SourceConnection String
    OLE DB Data link file
    File name=d:\ppp\fff.udl;
    OLE DB Provider for ODBC Access (Jet)
    Provider=MSDASQL; Driver={SQL Server}; Server=sss; Database= ddd; Uid=yyy; Pwd=zzz;
    OLE DB Provider for ODBC SQL Server
    Provider=MSDASQL; Driver={SQL Server}; Server=sss; Database= ddd; Uid=yyy; Pwd=zzz;
    OLE DB Provider for Microsoft Jet (Access)
    Provider=Microsoft.Jet.OLEDB.4.0; Data Source=d:\ppp\fff.mdb; User Id=yyy; Password=zzz;
    OLE DB Provider for Microsoft Jet (Access) with System Database
    Provider=Microsoft.Jet.OLEDB.4.0; Data Source=d:\ppp\fff.mdb; Jet OLEDB:System Database=fff.mdw;
    Specify user id and password in the U=xxx and P=zzz SQL2GMS options. If MDB file has a password, add: Jet OLEDB:Database Password= xxx;.
    OLE DB Provider for SQL Server
    Provider=sqloledb; Network Library=DBMSSOCN; Data Source=ddd ; Initial Catalog=ccc; User Id=yyy; Password=zzz;
    OLE DB Provider for SQL Server with trusted connection security
    Provider=sqloledb; Network Library=DBMSSOCN; Data Source=ddd; Initial Catalog=ccc; Trusted_Connection=yes;

  • MS Remote Examples
    SourceConnection String
    MS Remote - Access (Jet) through ODBC DSN
    Remote Server=http://xxx; Remote Provider=MSDASQL; DSN= nnn; Uid=yyy; Pwd=zzz;
    MS Remote - Access (Jet) through OLE DB Provider
    Provider=MS Remote; Remote Server=http://xxx; Remote Provider=Microsoft.Jet.OLEDB.4.0; Data Source=d:\ppp\fff.mdb; Uid=yyy; Pwd=zzz;
    MS Remote - Access (Jet) through OLE DB Provider with an RDS Datafactory Custom Handler
    Provider=MS Remote; Remote Server=http://xxx; Handler=MSDFMAP.Handler; Data Source=MyConnectTag
    The entry in \winnt\Msdfmap.ini is:
    [connect MyConnectTag]
    Access=ReadWrite
    Connect="Provider=Microsoft.Jet.OLEDB.4.0;Data Source=xxx.mdb; User Id=yyy; Password=zzz;"
    MS Remote - SQL Server using ODBC DSN
    Remote Server=http://xxx; Remote Provider=MSDASQL; Network Library=DBMSSOCN; DSN=nnn; Uid=yyy; Pwd=zzz;
    MS Remote - SQL Server using OLE DB Provider
    Provider=MS Remote; Remote Server=http://xxx; Remote Provider=SQLOLEDB; Network Library=DBMSSOCN;
    Data Source=nnn; Initial Catalog=ddd; User Id=yyy; Password=zzz;
    MS Remote - SQL Server through OLE DB Provider with an RDS Datafactory Custom Handler
    Provider=MS Remote; Remote Server=http://xxx; Handler=MSDFMAP.Handler; Data Source=MyConnectTag
    The entry in \winnt\Msdfmap.ini is:
    [connect MyConnectTag]
    Access=ReadWrite
    Connect="Provider=SQLOLEDB; Network Library=DBMSSOCN; Data Source=nnn; Initial Catalog=ddd; User Id=yyy; Password=zzz;"

For more information consult the documentation with your database driver. ODBC drivers can be had from several sources: Microsoft delivers ODBC with a number of drivers; database providers may have likely an ODBC driver for their RDBMS available and finally there are a number of third party ODBC drivers available (e.g. from http://www.easysoft.com ).


ODBC Examples

In this section we show a few examples using SQL2GMS with ODBC data sources.

ODBC Driver Manager

To configure ODBC data sources use the ODBC Data Source Administrator. This tool can be invoked from the Start button menu: Settings|Control Panel, and click on the ODBC Data Sources icon:


Under Windows XP the sequence is: Control Panel|Performance and Maintenance|Administrative Tools and click on the Data Sources (ODBC) icon. Under Windows 10, access the Control Panel at first, type 'odbc' in the top right box and select either 'Set up ODBC data sources (32-bit)' or 'Set up ODBC data sources (64-bit)'. The ODBC Data Source Administrator tool looks like:


To create a new data source, click the Add button, select a driver, give it a name (this is the DSN name) and configure the data source.


Example 8 - Reading from an MS Access Database

There are several ways to export data from an SQL database into a GAMS include file:

  1. Export a CSV (Comma Separated Values) file using Access Export. See also CSV Files.
  2. Use the MDB2GMS tool.
  3. Use SQL2GMS with a configured ODBC data source. The connection string will look like:
    "DSN=mydsn".
  4. Use SQL2GMS with a DSN-less ODBC connection. In this case we need to specify both the driver and the location of the database file explicitly in the connection string. The connection string will look like:
    "Driver={Microsoft Access Driver (*.mdb)};Dbq=D:\data\mydata.mdb".
  5. Use SQL2GMS with an OLE DB driver. The connection string can look like:
    "Provider=Microsoft.Jet.OLEDB.4.0;Data Source=D:\data\mydata.mdb"


Example 9 - Reading from an MS Excel Spreadsheet

There are numerous ways to export data from an Excel spreadsheet into a GAMS include file:

  1. Export a CSV (Comma Separated Values) file using Excel Export.
  2. Use the XLS2GMS tool.
  3. Use the GDXXRW tool.
  4. Use SQL2GMS with an Excel ODBC connection. An example is shown below.

Consider the spreadsheet ExcelDist.xls:


After configuring a data source ExcelDist that uses the Excel ODBC driver and points to the .xls file containing the above sheet, we can use the connection string: "DSN=ExcelDist". With the database browser we see:


I.e. the table name is Sheet1$. We now can formulate the query: SELECT city1, city2, distance FROM [Sheet1$]. We need the brackets to protect the funny table name. The result is (header removed in order to shorten the presentation=:

* -----------------------------------------------------
SEATTLE.NEW-YORK 2.5
SAN-DIEGO.NEW-YORK 2.5
SEATTLE.CHICAGO 1.7
SAN-DIEGO.CHICAGO 1.8
SEATTLE.TOPEKA 1.8
SAN-DIEGO.TOPEKA 1.4
* -----------------------------------------------------

Although other tools are often more convenient to use, this approach is useful if you need to select a subsection of the spreadsheet table. It is easy to select just a few columns or rows from a table using a properly formulated SQL query. The skeleton would be: SELECT columns_to_extract FROM [sheet1$] WHERE rows_to_extract.

An example of a more complex spreadsheet is (profit.xls):


A DSN-less connection string would be: "DRIVER=Microsoft Excel Driver (*.xls); DBQ=d:\gams projects\sql2gms\ver2.0\profit.xls". The browser will show:


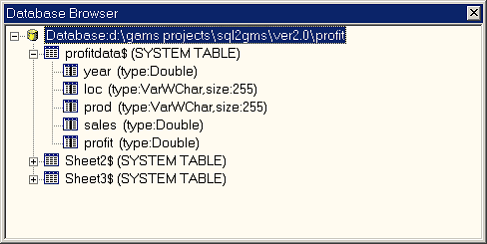

A possible query that maps the two value columns into a GAMS parameter is:


SELECT year, loc, prod, 'sales', sales
FROM  [profitdata$]
UNION
SELECT year, loc, prod, 'profit', profit
FROM  [profitdata$]

The result is (shortened for presentation):

* -----------------------------------------------------
1997.la.hardware.profit 8
1997.la.hardware.sales 80
1997.la.software.profit 16
1997.la.software.sales 60
1997.nyc.hardware.profit 5
1997.nyc.hardware.sales 110
1997.nyc.software.profit 10
1997.nyc.software.sales 100
1997.sfo.hardware.profit 9
1997.sfo.hardware.sales 80
1997.sfo.software.profit 10
1997.sfo.software.sales 50
1997.was.hardware.profit 7
1997.was.hardware.sales 120
1997.was.software.profit 20
1997.was.software.sales 70
1998.la.hardware.profit 6
1998.la.hardware.sales 70
* -----------------------------------------------------

This example is also part of the GAMS Data Utilities Library, see model [Excel] for reference.


Example 10 - Reading from a Text File

Microsoft delivers ODBC with a text file driver which allows you to read a text file as if it is a database table.

A fixed format file such as:

City1      City2     Distance
SEATTLE    NEW-YORK  2.5
SAN-DIEGO  NEW-YORK  2.5
SEATTLE    CHICAGO   1.7
SAN-DIEGO  CHICAGO   1.8
SEATTLE    TOPEKA    1.8
SAN-DIEGO  TOPEKA    1.4

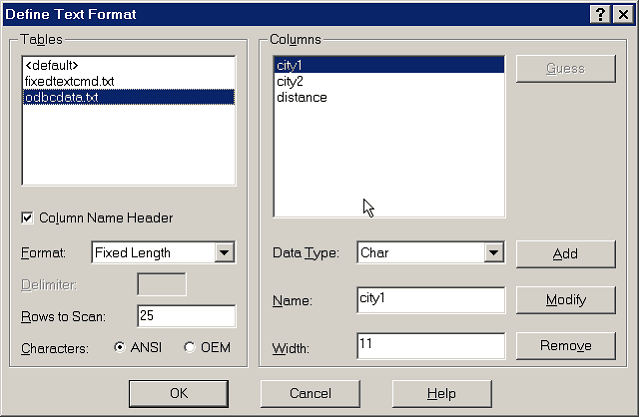

can be read using Fixed Length setting of the text driver:


The resulting include file will look like:

* -----------------------------------------------------
* SQL2GMS Version 2.0, January 2004
* Erwin Kalvelagen, GAMS Development Corp
* -----------------------------------------------------
* ADO version:       2.7
* Connection string: DSN=text
* Query:             SELECT city1, city2, distance FROM odbcdata.txt
* Provider:          MSDASQL
* -----------------------------------------------------
SEATTLE.NEW-YORK 2.5
SAN-DIEGO.NEW-YORK 2.5
SEATTLE.CHICAGO 1.7
SAN-DIEGO.CHICAGO 1.8
SEATTLE.TOPEKA 1.8
SAN-DIEGO.TOPEKA 1.4
* -----------------------------------------------------

Note that the text file is specified directly within the FROM clause.

A CSV file can be interpreted as a table as well, or any other separated format. We will try to read:

City1;City2;Distance
SEATTLE;NEW-YORK;2.5
SAN-DIEGO;NEW-YORK;2.5
SEATTLE;CHICAGO;1.7
SAN-DIEGO;CHICAGO;1.8
SEATTLE;TOPEKA;1.8
SAN-DIEGO;TOPEKA;1.4

This can be read using:


The actual formats used are stored by ODBC in an INI file schema.ini (located in the directory of the data files) which can be inspected directly:

[odbcdata.txt]
ColNameHeader=True
Format=FixedLength
MaxScanRows=25
CharacterSet=ANSI
Col1=city1 Char Width 11
Col2=city2 Char Width 11
Col3=distance Float Width 10

[odbcdata2.txt]
ColNameHeader=True
Format=Delimited(;)
MaxScanRows=25
CharacterSet=OEM
Col1=City1 Char Width 255
Col2=City2 Char Width 255
Col3=Distance Float

This example is also part of the GAMS Data Utilities Library, see model [Text] for reference.


Strategies

Including SQL statements to extract data from a database inside your model can lead to a number of difficulties:

  • The database can change between runs, leading to results that are not reproducible. A possible scenario is a user calling you with a complaint: "the model is giving strange results". You run the model to verify and now the results are ok. The reason may be because the data in the database has changed.
  • There is significant overhead in extracting data from a database. If there is no need to get new data from the database it is better to use a snapshot stored locally in a format directly accessible by GAMS.
  • It is often beneficial to look at the extracted data. A first reason, is just to make sure the data arrived correctly. Another argument is that viewing data in a different way may lead to a better understanding of the data. A complete "under-the-hood" approach may cause difficulties in understanding certain model behavior.

Often it is a good strategy to separate the data extraction step from the rest of the model logic.

If the sub-models form a chain or a tree, like in:

Data Extraction --> Data Manipulation --> Model Definition --> Model Solution --> Report Writing

we can conveniently use the save/restart facility. The individual submodel are coded as:

  • Step 0 - Data Extraction: sr0.gms
    $onText
    step 0: data extraction from database
    execute as: > gams sr0 save=s0
    $offText

    Set
       i 'suppliers'
       j 'demand centers';

    Parameter
       demand(j)
       supply(i)
       dist(i,j) 'distances';

    $onEcho > howtoRead.txt
    C=Provider=Microsoft.Jet.OLEDB.4.0;Data Source=%system.fp%transportation.mdb

    Q1=SELECT name FROM suppliers
    O1=i.inc

    Q2=SELECT name FROM demandcenters
    O2=j.inc

    Q3=SELECT name,demand FROM demandcenters
    O3=demand.inc

    Q4=SELECT name, supply FROM suppliers
    O4=supply.inc

    Q5=SELECT supplier, demandcenter, distance FROM distances
    O5=dist.inc
    $offEcho

    $call =sql2gms.exe @howtoRead.txt

    Set i /
    $include i.inc
    /;

    Set j /
    $include j.inc
    /;

    Parameter demand /
    $include demand.inc
    /;

    Parameter supply /
    $include supply.inc
    /;

    Parameter dist /
    $include dist.inc
    /;

    display i, j, demand, supply, dist;

  • Step 1 - Data Manipulation: sr1.gms
    $onText
    step 1: data manipulation step
    execute as: > gams sr1 restart=s0 save=s1
    $offText

    Scalar f 'freight in dollars per case per thousand miles' / 90 /;

    Parameter c(i,j) 'transport cost in thousands of dollars per case';
    c(i,j) = f*dist(i,j)/1000;

  • Step 2 - Model Definition: sr2.gms
    $onText
    step 2: model definition
    execute as: > gams sr2 restart=s1 save=s2
    $offText

    Variable
       x(i,j) 'shipment quantities in cases'
       z      'total transportation costs in thousands of dollars';

    Positive Variable x;

    Equation
       ecost      'define objective function'
       esupply(i) 'observe supply limit at plant i'
       edemand(j) 'satisfy demand at market j';

    ecost..      z  =e= sum((i,j), c(i,j)*x(i,j));

    esupply(i).. sum(j, x(i,j)) =l= supply(i);

    edemand(j).. sum(i, x(i,j)) =g= demand(j);

  • Step 3 - Model Solution: sr3.gms
    $onText
    step 3: model solution
    execute as: > gams sr3 restart=s2 save=s3
    $offText

    option lp = cplex;

    Model transport / all /;
    solve transport using lp minimizing z;

  • Step 4 - Report Writing: sr4.gms
    $onText
    step 4: report writing
    execute as: > gams sr4 restart=s3
    $offtext

    abort$(transport.modelStat <> 1) "model not solved to optimality";

    display x.l, z.l;


A model that executes all steps can be written as:

execute '=gams.exe sr0 lo=3 save=s0';
abort$errorLevel "step 0 failed";

execute '=gams.exe sr1 lo=3 restart=s0 save=s1';
abort$errorLevel "step 1 failed";

execute '=gams.exe sr2 lo=3 restart=s1 save=s2';
abort$errorLevel "step 2 failed";

execute '=gams.exe sr3 lo=3 restart=s2 save=s3';
abort$errorLevel "step 3 failed";

execute '=gams.exe sr4 lo=3 restart=s3';
abort$errorLevel "step 4 failed";

If you only change the reporting step, i.e. generating some output using PUT statements, then you only need to change and re-execute step 4. If you change solver or solver options, then only steps 3 and 4 need to be redone. For a small model like this, this exercise may not be very useful, but when the model is large and every step is complex and expensive, this is a convenient way to achieve quicker turn-around times in many cases.

The model [SQLSr5] is also part of the GAMS Data Utilities Library.

In some cases the save/restart facility is not appropriate. A more general approach is to save the data from the database in a GDX file, which can then be used by other models. We can use the model from step 0 to store the data in a GDX file:

SQL2GDX1.gms

$onText
Store data from Access database into a GDX file.
$offText

execute '=gams.exe sr0 lo=3 gdx=trnsport.gdx';
abort$errorLevel "step 0 failed";

execute '=gdxviewer.exe trnsport.gdx';

The model [SQL2GDX1] is also part of the GAMS Data Utilities Library.

We can also let SQL2GMS create the GDX file:

SQL2GDX2.gms

$onText
Store data from Access database into a GDX file.
$offText

$onEcho > howToRead.txt
C=Provider=Microsoft.Jet.OLEDB.4.0;Data Source=%system.fp%transportation.mdb
X=%system.fp%transportation.gdx

Q1=SELECT name FROM suppliers
S1=i

Q2=SELECT name FROM demandcenters
S2=j

Q3=SELECT name, demand FROM demandcenters
A3=demand

Q4=SELECT name, supply FROM suppliers
A4=supply

Q5=SELECT supplier, demandcenter, distance FROM distances
A5=dist
$offEcho

$call =sql2gms.exe @howToRead.txt

The first approach has the advantage that a complete audit record is available from the data moved from the database to the GDX file in the sr0.lst listing file. If someone ever wonders what came out of the database and how this was stored in the GDX file, that file gives the answer.

The model [SQL2GDX2] is also part of the GAMS Data Utilities Library.

To load the GDX data the following fragment can be used:

GDXTRNSPORT.gms

This model demonstrates how to load the transportation data from GDX file at compile time.

Set
   i 'suppliers'
   j 'demand centers';

Parameter
   demand(j)
   supply(i)
   dist(i,j) 'distances';

$gdxIn transportation.gdx
$load i j demand supply dist
$gdxIn

display i, j, demand, supply, dist;

DBTimestamp2.gms

In one application I had to retrieve data from the database each morning, at the first run of the model. The rest of the day, the data extracted that morning could be used. The following logic can implement this:

$onText
Retrieve data from data base first run each morning.
$offText

$onEcho > getdate.txt
C=Provider=Microsoft.Jet.OLEDB.4.0;Data Source=%system.fp%transportation.mdb
Q=select day(now())
O=dbtimestamp.inc
$offEcho

$if not exist dbtimestamp.inc $call "echo 0 > dbtimestamp.inc"

Scalar dbtimestamp 'day of month when data was retrieved' /
$include dbtimestamp.inc
/;

Scalar currentday 'day of this run';
currentday = gday(jnow);

display "compare", dbtimestamp, currentday;

if(dbtimestamp<>currentday,
   execute '=gams.exe sr0 lo=3 gdx=transportation.gdx';
   abort$errorLevel "step 0 (database access) failed";

   execute '=sql2gms.exe @getdate.txt'
);

The include file dbtimestamp.inc contains the day of the month (1,..,31) on which the data was extracted from the database. If this file does not exist, we initialize it with 0. We then compare this number with the current day of the month. If the numbers do not agree, we execute the database extraction step and rewrite the dbtimestamp.inc file. This last operation could be done using a PUT statement, but in this case we used an SQL statement.

The model [DBTimestamp2] is also part of the GAMS Data Utilities Library.


Parameter Files

Parameters can be specified in an external parameter file. This is important if the length of the command-line exceeds 255 characters, which is a hard limit on the length that GAMS allows for command-lines. Instead of specifying a long command line as in:

$call =sql2gms C="DSN=sample" O="c:\My Documents\data.inc" Q="SELECT * FROM mytable"

we can use a command line like:

$call =sql2gms @"c:\My Documents\options.txt"

The parameter file

c:\My Documents\options.txt

can look like:

C=DSN=sample
O=c:\My Documents\data.inc
Q=SELECT * FROM mytable

It is possible to write the parameter file from inside a GAMS model using the $echo command. The following example will illustrate this:

$set cmdfile "c:\windows\temp\commands.txt"
$echo "C=DSN=sample"              >  "%cmdfile%"
$echo "O=E:\models\labor.INC"     >> "%cmdfile%"
$echo "Q=SELECT * FROM labor"     >> "%cmdfile%"
$call =sql2gms @"%cmdfile%"

Parameter p /
$include "E:\models\labor.INC"
/;
display p;

Newer versions of GAMS allow the usage of the $onEcho and $offEcho commands:

$set cmdfile "c:\windows\temp\commands.txt"
$onEcho  >  "%cmdfile%"
C=DSN=sample
O=E:\models\labor.INC
Q=SELECT * FROM labor
$offEcho

$call =sql2gms @"%cmdfile%"

Parameter p /
$include "E:\models\labor.INC"
/;
display p;

If a query becomes very long, it is possible to spread it out over several lines. To signal a setting will continue on the next line insert the character \ as the last character. E.g.:

Q=SELECT prod, loc, year, 'sales', sales FROM data \
UNION \
SELECT prod, loc, year, 'profit', profit FROM data


Notes

ADO

ActiveX Data Objects. Microsoft's data-access object model. An object-oriented architecture for accessing data stored in SQL databases and related data sources. Accessible from a large number of host languages such as VB, C++, Delphi. Supersedes ODBC. Many SQL databases provide ADO access through either OLEDB or ODBC.

ODBC

An API and driver manager system for accessing data stored in an RDBMS. The API provides applications a way to talk to databases while the driver manager application allows users to install, configure and manage ODBC drivers for different databases.

OLEDB

Driver architecture for SQL databases. A driver is called a OLE DB provider. This is used from ADO.

UNC Names

UNC means Unified Naming Convention. UNC names are a Microsoft convention to name files across a network. The general format is:

\\<server>\<share>\<path>\<file>

Examples:

\\athlon\c\My Documents\sql2gms.rtf

GDX Files

A GDX file contains GAMS data in binary format. The following GAMS commands will operate on GDX files: $gdxIn, $load, execute_load, execute_unload. The GDX=filename command-line option will save all data to a GDX file. A GDX file can be viewed in the GAMS IDE using File|Open.

MDB2GMS

MDB2GMS is a tool to import tables from MS Access databases. This utility directly uses MS Access and DAO (Data Access Objects) resulting in a somewhat simpler interface. It is not needed to specify a connection string, but just a .mdb file. The query mechanism is similar: a query is sent as it is to the database server and the result set is translated into a GAMS representation. For more information see MDB2GMS.

XLS2GMS

XLS2GMS is a tool to import data from an Excel spreadsheet. It considers the content of a selected range as GAMS source code. For more information XLS2GMS.

GDXXRW

GDXXRW is a utility to read and write Excel spreadsheet data. GDXXRW can read multiple ranges in a spreadsheet and write the data to a GDX file, or read from a GDX file, and write the data to different ranges in a spreadsheet. For more information GDXXRW.

Quotes

Examples of handling of indices when the option B for quoting strings containing blanks is used:

Input Output Remarks
Hello hello blanks or embedded quotes
"hello" "hello" touched, is quoted already
'hello' 'hello' id.
"hello' "hello' id., but will generate an error in GAMS
o'brien "o'brien"
'o'brien' 'o'brien' touched, will generate an error in GAMS
art"ificial 'art"ificial'
art"ifi'cial "art'ifi'cial"

$CALL Command

The $call command in GAMS will execute an external program at compile time. There are two forms:

$call externalProgram
$call =externalProgram

The version without the leading '=' calls the external through the command processor (command.com or cmd.exe). The second version with the '=' bypasses the command processor and directly executes the external program. We mention some of the differences:

  1. Some commands are not external programs but built-in commands of the command processor. Examples are COPY, DIR, DEL, ERASE, CD, MKDIR, MD, REN, TYPE. If you want to execute these commands you will need to use the form $call externalProgram which uses the command processor.
  2. If you want to execute a batch file (.bat or .cmd file) then you will need to use the form $call externalProgram.
  3. If it is important to stop with an appropriate error message if the external program does not exist, only use the form $call =externalProgram. The other form is not reliable in this respect. This can lead to surprising results and the situation is often difficult to debug, so in general we would recommend to use the form: $call =externalProgram.
  4. When calling pure Windows programs it is important to call the second form. The first form will not wait until the external Windows program has finished. If it is important to use a command processor in the invocation of a Windows program, use the START command, as in: $call start /w externalWindowsProgram. Otherwise, it is preferred to use: $call =externalWindowsProgram.
Attention
In general it is recommended to use the $call =externalProgram version for its better error-handling.

When command-line arguments need to be passed to the external program, they can be added to the line, separated by blanks:

$call externalProgram parameter1 parameter2
$call =externalProgram parameter1 parameter2

The total length of the command-line can not exceed 255 characters. If the program name or the parameters contain blanks or quotes you will need to quote them. You can use single or double quotes. In general the following syntax will work:

$call '"external program" "parameter 1" "parameter 2"'
$call ="external program" "parameter 1" "parameter 2"

It is noted that the first form needs additional quotes around the whole command-line due to bugs in the parsing of the $call in GAMS. The second form work without additional quotes only if the = appears outside the double quotes.

Compile Time Commands

All $ commands in GAMS are performed at compile time. All other statements are executed at execution time. This means that a compile time command will be executed before an execution time command, even if it is below. As an example consider:

File batchfile / x.bat /;
putClose batchfile "dir"/;
$call x.bat

This fragment does not work correctly as already during compilation, the $call is executed, while the put statements are only executed after the compilation phase has ended and GAMS has started the execution phase. The above code can be fixed by moving the writing of the batch file to compilation time as in

$echo "dir" > x.bat
$call x.bat

or by moving the external program invocation to execution time:

File batchfile / x.bat /;
putClose batchfile "dir"/;
execute x.bat;

Notice that all $ commands do not include a semi-colon but are terminated by the end-of-line.
